  Home >>Temperature and Pressure Switches >>Industrial Pressure Switches>>DS Dual Series
DS Dual   Orion DS Dual Series Pressure Switches have been designed for applications requiring multiple setpoints, but with only one process connection. Typical applications are for alarm and trip fuctions. Some other are to keep pressure between two limits HI and LO, with two independent signals.
  •       SUMMARY
  •      SPECIFICATIONS
  •       ORDER CODE
  •          PRICE
  •     DOWNLOADS
• Ready to use, easy assembly, easy adjustability,
• Robust,
• Cast aluminum case,
• PTFE and AISI 316 SS diaphragm,
• Two independently adjustable set points,
• IP66 protection class,
• Adjustable in the field..






 Range 0.067 to 200 bar
 Measurement element Diaphragm; Neoprene, Teflon, AISI 316SS, Reinforced plastic
 Switch SPDT Snap action switch A8, Max. 5 A / 250 VAC,
 Differential type Fix or Adjustable
 Protection class IP66
 Body Cast aluminum
 Max.Temperature 80 oC, 150 oC for stainless steel diaphragm
 Cable input 1/2" NPT, 3/4" NPT ve M20x1.5 Gland
 Repeatability 2% of F.S.
 Pressure connection 1/4" NPT or BSP thread
 Pressure connection material AISI 316 SS
 Mounting Direct, for outside and inside area,

     ORDER CODE



 This chapter is for our members use only.

 If you are a member click here,
 If you are not a member, to register for click here

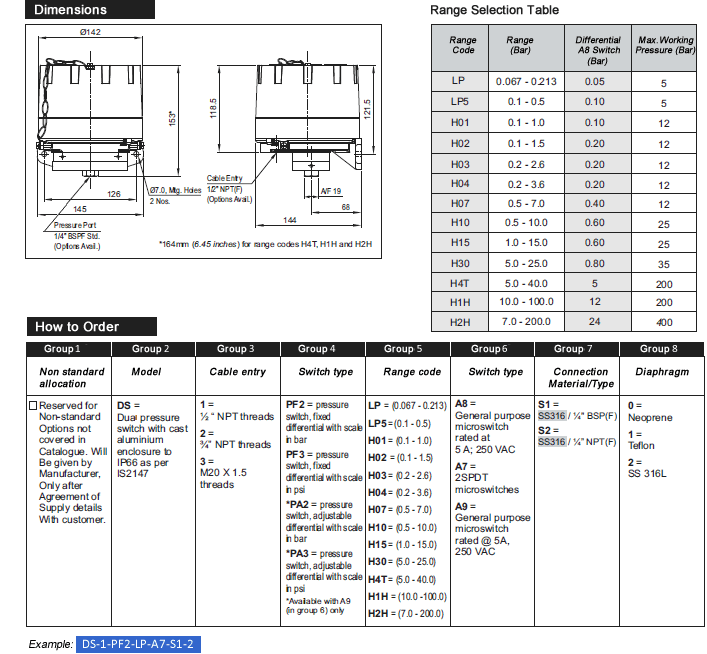

DS Series Data
